QBC Curved-arm Altitude Platform (Boom Lift)

Curved-arm Altitude Platform, Boom Lift, Electrical driving or Diesel driving

Functional Specifications:

This platform compact, lightweight and energy-saving, intelligent and perfect control system, humanized layout, lubrication-free design, easy operation and maintenance, comprehensive security protection and rich configuration.
Σ-shape curved arm compact structure and flexible extension, can realize vertical lifting, horizontal extension and strong obstacle-surpassing ability, 160° rotatable platform large working range and narrow turntable, compact layout and high work efficiency, can switch to storage state, aluminum alloy working bucket easy to disassemble and assemble.
Intuitive and friendly control panel easy full range operation, accurate and efficient control, equipped with chassis tilt protection, emergency landing, safe speed limit, flexible start and stop, etc. protection measures.

Technical Parameters:

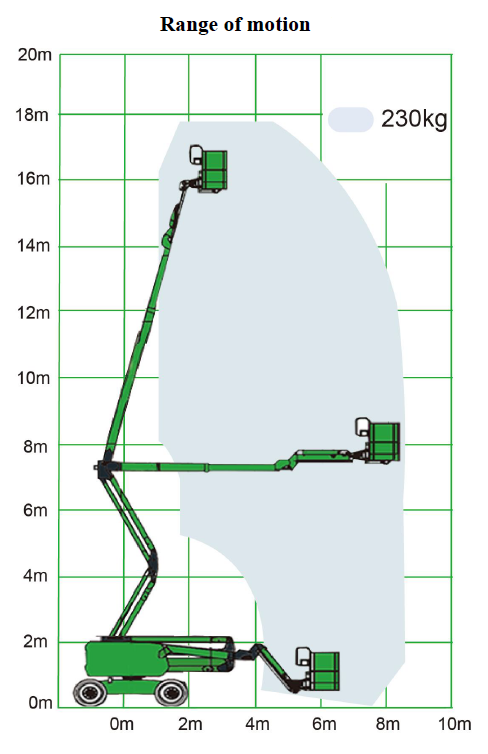

Max Loading Weight	230kg (2-person)
Max Lifting Height	16m
Max Working Height	18m
Max Across-over Height	7.6m
Max Working Radius	9m

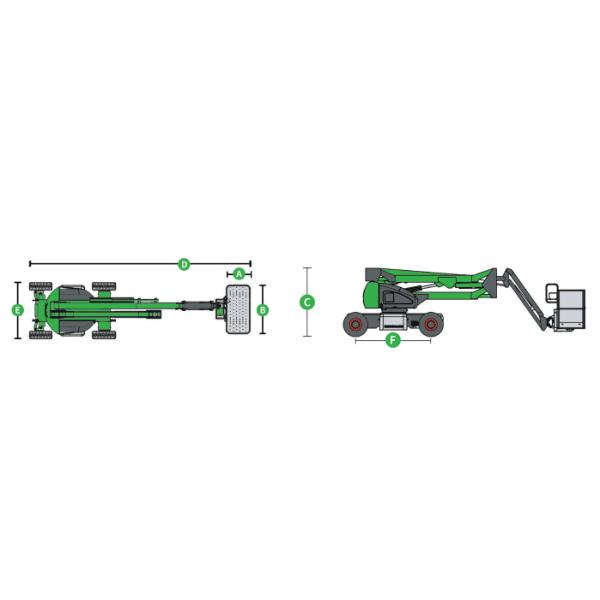

Platform Width (A)	0.76m
Platform Length (B)	1.4m
Stowed Height (C)	2.13m
Stowed Length (D)	7.2m
Overall Width (E)	2.26m
Wheelbase (F)	2.1m
Max Loading Weight	230kg (2-person)
Platform Rotation	±70°
Turntable Rotation	360°
Vertical Jib Rotation	±70°
Moving Speed (stowed)	5.5km/h
Climbing Capacity (stowed)	45%
Max Working Angle (Tilt Sensor Activation)	3°
Turning Radius	4.5m
Total Weight	About 7500kg
Payment Term	By T/T, 50% prepaid Pay the balance before loading
Delivery Time	60 working days
Shipment	1*20’ container
